LIFE FITNESS

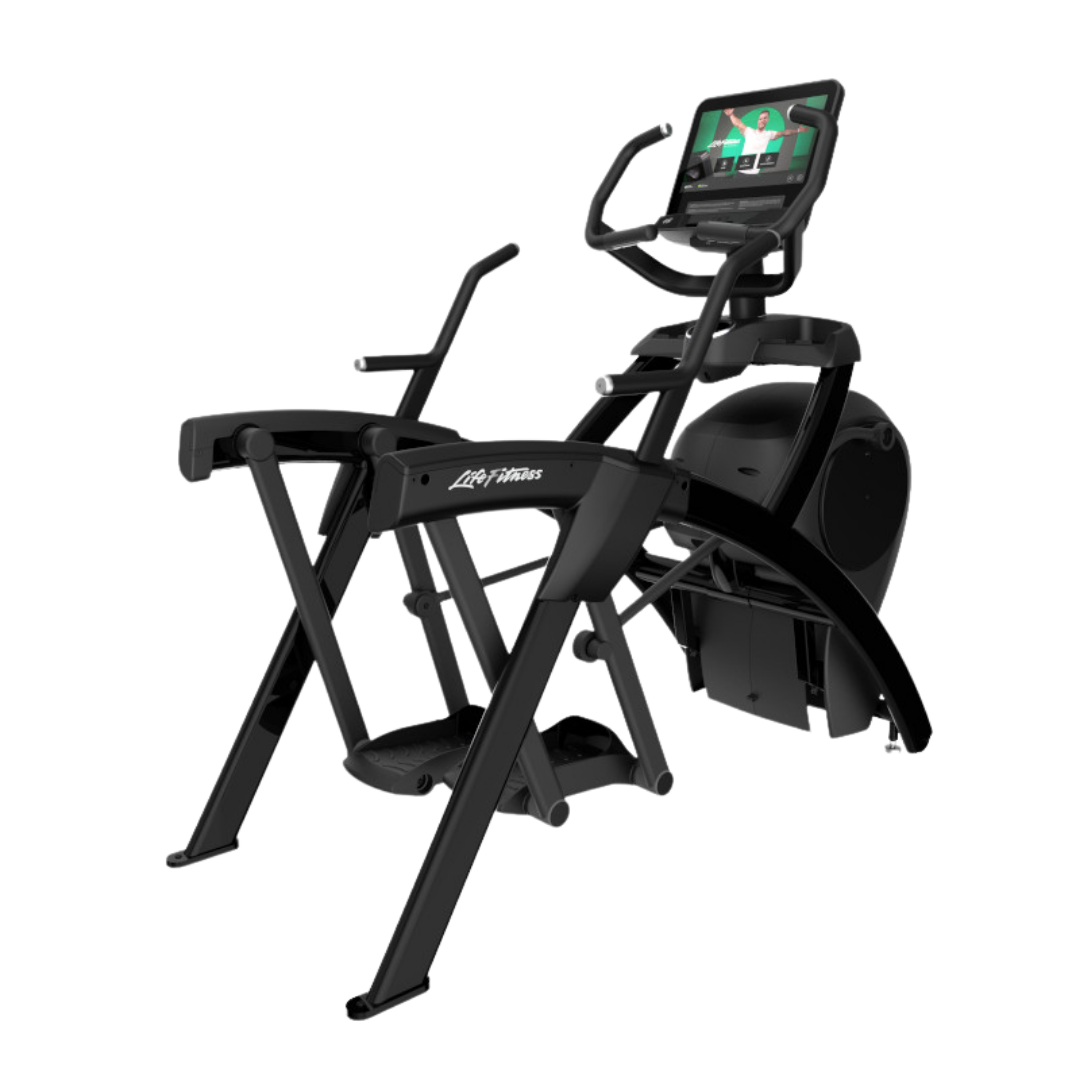

Lower Body Arc Trainer
The Arc Trainer is a versatile alternative motion cross-trainer that appeals to a wide range of exercisers. The 21 incline levels allow users to choose the type of workout they prefer and the different muscle groups that they want to work. The Arc Trainer is truly a 3-in-1 cardio machine. The wide incline range gives exercisers the ability to glide (lower inclines), stride (medium inclines), or climb (higher inclines).
Users can also choose between long cardio workouts, short bursts during interval training, or workouts focused on building power and strength. Fitness facilities have several console options to choose from. They range from simple and intuitive, to entertainment rich and engaging.
- Description: Life Fitness Lower Body Arc Trainer
- Console: Discover SE4
Specifications
| Description | Life Fitness Lower Body Arc Trainer |
|---|---|
| Console | Discover SE4 |
| Dimensions (L” x W” x H”) | 76.5″ x 33″ x 62.5″ (194 cm x 93 cm x 159 cm) |
| Equipment Weight | 412 lbs (187 kg) |
|---|---|
| Pedal Dimensions (inches) | Oversized pedals |
| Minimum Space between Foot Pedals (inches) | 3″ |
| Step-Up Height (inches) | 5.25″ |
| Max User Weight | 400 lbs (181 kg) |
| Colors | Arctic Silver, Diamond White, Black Onyx, Titanium Storm |
| Handlebars | Cruiser Grips and Halo Grips |
| Stride Length (inches) | 24″ |
| Ramp Angle | 21 levels |
| Resistance Levels | 100 levels |
| Resistance System | Resistance Range: up to 1200 Watts; Drive Type: Two-stage drive; Brake: Brushless Eddy current brake with generator |
| Transport Wheels | Yes |
| USB Port | Yes |
| Water Bottle Holder/Accessory Tray | Split level display with magazine rack. Centrally located water bottle holder and dual utility trays. |
| Power Requirements | Discover Consoles – 24V, 3.75A (90W) Attachable TV- 24V, 2.5A (60W) |
| Maximum Watts | up to 1200 |
| Heart Rate | Yes |
| Touch | Yes |
| Telemetry | Yes |
| Shipping Weight | 485 – 495 lbs (220 kg – 225 kg) |
Consoles for every exerciser
Consoles for every budget and exerciser's needs.
DISCOVER SE4 CONSOLE
Console Innovations
Introducing the Life Fitness Discover SE4 Console—a state-of-the-art console that captures the attention of exercisers, provides a multitude of immersive workout experiences and gives fitness facilities the power to create custom-branded content.
Connectivity is at the heart of Discover SE4. Exercisers can seamlessly sync a smartphone, tablet or other device using Bluetooth or NFC technology.
Through Facility Connect, you can enable access to more than 500 Life Fitness On Demand+ fitness experiences and facilities can create custom-branded content that appears on the console.
you can see, feel and experience. The full-screen 24″ terrain view transports and motivates exercisers, while our unique Adaptive Flex Deck® brings the best of outdoor running indoors.
24" and 16" Discover SE4 Console
IMMERSIVE LARGE SCREEN
A large, 1080p touch screen employs cutting-edge technology for an incredibly responsive user interface. The 24” screen (also available in 16”) is both intuitive and stylish and allows users to choose the cardio experience that’s right for them.
FACILITY CONNECT
Facility Connect is the ultimate solution for managing and customizing Life Fitness equipment, maximizing lifespan, personalizing experiences, and making data-driven decisions.
Key Features of Facility Connect:
- Equipment Management
- Insightful Data Analytics
- Streamlined Maintenance
- Software Update Assurance
- Enhanced Brand Empowerment
- Life Fitness on Demand+
